The Next Generation Boat Control System

Helm Master™ EX is a fully integrated boat control system that makes navigating and getting to your destination easier, and once you arrive, gives a whole new level of control to precisely manoeuvre your craft to exactly where and how you want it. Never before has a single outboard engine been paired with a joystick control, delivering exceptional versatility and innovation. When it comes to twin to quint engine applications, the Helm Master™ EX excels even further, with seamlessly integrated multi engine control.

No longer do you have to install multiple third-party devices such as steering and control systems, autopilot navigation and additional heavy batteries -nor the hassles that come with complex integration systems. With Yamaha’s Helm Master™ EX, you get all of the benefits of these systems and more, in a simple, clean and fully integrated, plug-and-play system. And because every component has been designed, engineered and manufactured by Yamaha, it works seamlessly together to deliver the ultimate in reliability, durability and performance.

What is Helm Master EX Capable of?


Autopilot

Yamaha’s autopilot provides many convenient features for boat control and operation.

With the simple push of a button or taps on your compatible Multifunction Display, you can quickly plot out your journey, sit back and let the Helm Master™ EX Autopilot and Digital Electric Steering do their thing.


SetPoint™

SetPoint™ has three primary modes - StayPoint™ FishPoint™ and DriftPoint™. Each SetPoint™ mode offers captains even greater control for situations such as fishing, controlled drifting and maintaining position.

SetPoint™ can be used on both single and multi-engine configurations.


JOYSTICK Manoeuverability

The Helm Master™ EX joystick brings your boat's navigation right to your fingertips. It offers smooth shifting and single-function buttons to allow precise movements and positioning within SetPoint™.

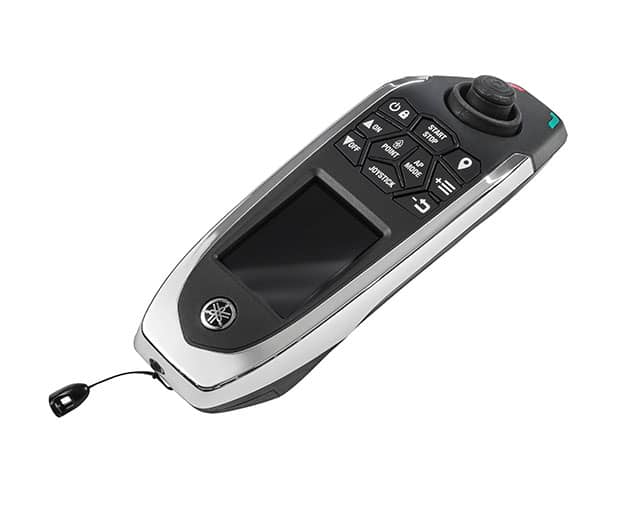

The all-new wireless joystick makes it even easier to navigate docks and tight areas from anywhere on the boat. From bow to stern, captains can see everything around their boat and make immediate adjustments with all Helm Master joystick, autopilot and Man Overboard functionality.


Single or Multi-Engine Compatibility

Helm Master™ EX is available across all current Yamaha Digital Electronic Control outboards from F150 to XF450 and can be installed in single, double, triple and quad outboard applications. Single engine autopilot is perfect for longer runs away from home base.



level 1

Digital Electronic Control (DEC)

Level 1 incorporates the completely new, upgraded DEC and compatible displays.

There is also the option of the Electronic Key Switch (EKS) with keyless remote.


Display


Switch


DEC



Level 2

Digital Electric Steering (DES)

Level 2 sees the addition of Yamaha’s all-new steering control system with Built-in or Bolt-on. This system takes marine steering to the next level, with extreme smoothness, technical smarts and precision.


Helm


Bolt-on/Built-in DES


Display


Switch


DEC



Level 3

Autopilot

Level 3 introduces Yamaha’s all-new Autopilot. This system provides a number of built-in single touch functions that makes navigating and getting to your destination easier and quicker.

The system includes a slimline eight-button panel which goes on the console, a heading sensor which sits under the console and an antenna above the boat.


Autopilot


Helm


Bolt-on/Built-in DES


Display


Watch Video

Switch


DEC



Level 4

Full Manoeuverability Joystick

Level 4 is the premium level of the Helm Master™ EX system, with the addition of Yamaha’s full manoeuverability joystick control system.

This stylish and ergonomic controller provides simultaneous control over shift, throttle and steering, in one easy-to-use joystick application. It can also be used in conjunction with many of the built-in Helm Master™ EX SetPoint™ positioning modes (FishPoint™, DriftPoint™, DriftPoint™ Track, and StayPoint™), for maximum control over your vessel's positioning.


Wireless Joystick


Joystick


Autopilot


Helm


Bolt-on/Built-in DES


Display


Switch


DEC



Quick Reference Chart

LEVEL 1 (DEC)
LEVEL 2 (DES)
LEVEL 3 (Autopilot)
LEVEL 4 (Joystick)
Single Lever
Speed Control
Pattern Shift
Trim Assist
Center Engine
Neutral Hold
Electronic Key Switch (EKS) with Y-COP®
CL5 Display
MFD Interfaces
Adjustable/Variable Lock to Lock
Adjustable/Variable Steering Friction
Heading Hold
Course Hold
Pattern Steer
Track Point
Bow Thruster Integration
Autopilot with Joystick Adjustability
Joystick Manoeuverability (incl. Single Engine)
Wireless Joystick Manoeuverability (incl. Single Engine)
SetPoint® Suite Features (incl. Single Engine)
Track Point with SetPoint® Final Stop
